SJ-S系列雙機頭吹膜機


65/FM600

70/FM700

75/FM800

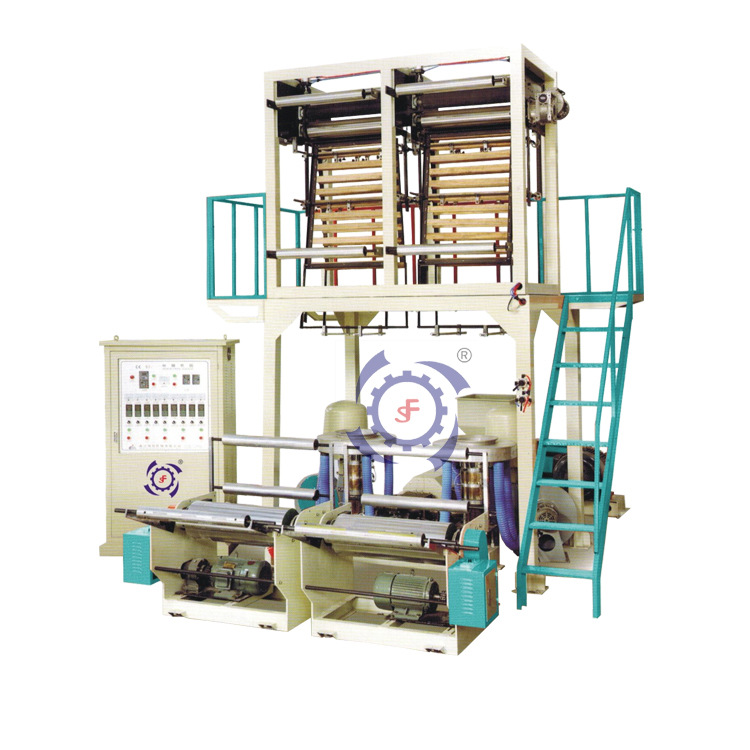

SJ-S系列雙機頭吹膜機

SJ-S Series Double Die Head Film Blowing Machine

性能及特點(Performance and Characteristics

擠出機的機筒、螺桿均采用優質合金鋼經氮化和精密加工。具有最佳硬度和耐腐蝕性,本機組經科學設計一套擠出兩個機頭,提高生產產量,節省能源、勞動力、生產廠房的等優點。

Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance,Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.





用途



用于吹制低密度聚乙烯(LDPE)、高密度聚乙烯(HDPE)塑料薄膜??芍瞥筛?/span>

種背心袋、平口袋、平口袋、廣泛應用于食品、服裝、紡織、工業等包裝。









型號

Model

SJ-S65/FM600

SJ-S75/FM800

螺桿直徑

Diameter of screw

65mm

75mm

螺桿直徑比

Screw L/D Ratio

281

281

螺桿轉速

Screw rod rotational speed

10-110r/min

10-110r/min

產量

Max output

50kg/h

90kg/h

薄膜折徑

max reduced diameter of film(mm)

550mmX2

750mmX2

薄膜單面厚度

single-sided Thickness of film(mm)

0.006-0.10mm

0.006-0.10mm

主機功率

Power of main motor(kw)

18.5-22kw

37kw

機重

 Weight(T)

3000kg

4500kg

外形尺寸

Outline Dimension(LXWXH)( mm)

4800X2200X3800MM

5200X2600X4200MM
